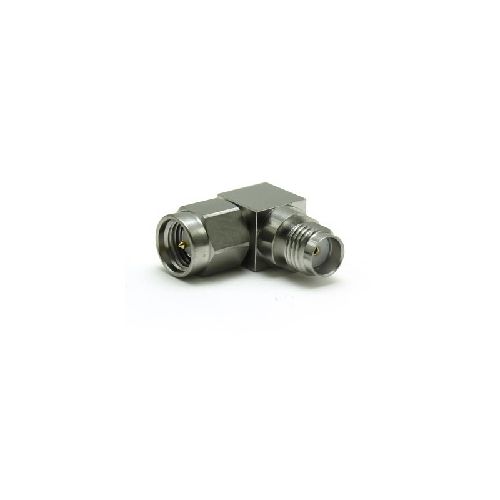

30-542-H3 | 30542H3 | SMA R/A SS Plug to Jack Adaptor
SMA Stainless Steel IP68 Un- Mated Right Angle Plug to Jack Adaptor with Gold Plated Centre Contact
| Complete Electronics Part No. | 30542H3 |
|---|---|
| Manufacturers Part No. | 30-542-H3 |
| Type | Right Angled |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 18GHz
- Dielectric Withstand Voltage 750 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-15
- RoHS3 Compliant
- Mating Cycles: 500
- Contact Retention: 27N min
- Weight: 7.38g
- Mating Force: 23Ncn
- Un-Coupling Force: 23Ncn
- Operating Temperature: -55 to +155°C
- IP Rating (Un-Mated): IP68
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Stainless Steel
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Passavated
- Pack Size 1
