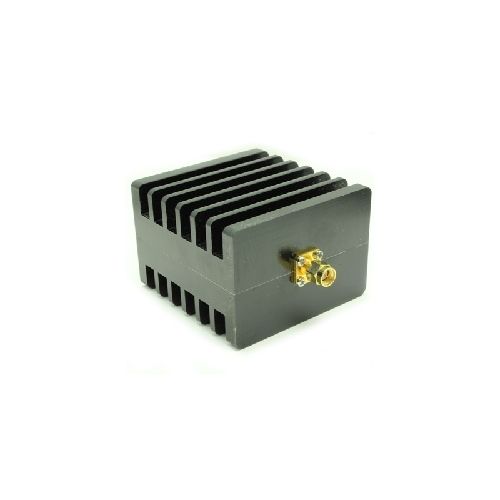

30-870-1 | 308701 | Plug to Jack 10dB, 50W, DC to Attenuator
SMA in line Plug to Jack Attenuator 10dB, 50W, DC to 2.5GHz the SMA connectors are hermetically sealed
| Complete Electronics Part No. | 308701 |
|---|---|
| Manufacturers Part No. | 30-870-1 |
| Impedance | 50 Ohm |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: DC to 2.5GHz
- Power: 50 Watt
- Dielectric Withstand Voltage 750 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-15
- RoHS3 Compliant
- Mating Cycles: 500
- Contact Retention: 27N min
- Weight: 423g
- Mating Force: 23Ncn
- Un-Coupling Force: 23Ncn
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP67
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Heatsink: Aluminium
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Heatsink:: Black
- Pack Size 1
