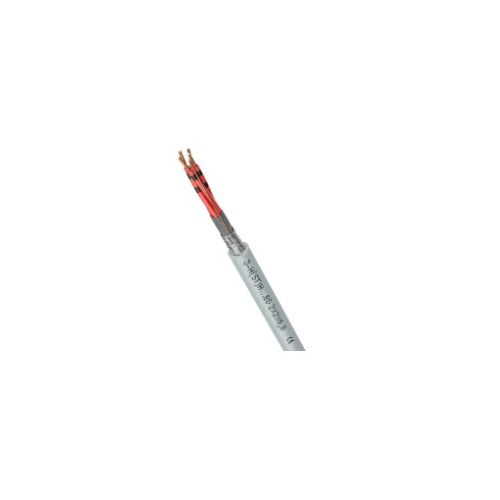

30017788 | J-H(ST)H...BD 4X2X0,8 | Telephone Cable
Telephone Installation Cable, Number of Pairs: 4 x 2, Cable Outer Diameter: 9.2mm, Twisted-pair (TP) design, Halogen-free and highly flame retardant materials
| Complete Electronics Part No. | 30017788 |
|---|---|
| Manufacturers Part No. | 30017788 |
| Number of Conductors: | 8 |
| Conductor Cross Section: | 0.5mm² |
| Cable Type: | Telephone Cable |
| Shielding: | Shielded / Screened |
| Cable Jacket: | Halogen Free |
Description
30017788 J-H(ST)H...BD 4x2x0,8 Telephone Cable
J-H(ST)H...BD 4x2x0,8, Shielded, VDE 0815
Product Design
Core Idendification: Colours (VDE0815)
Outer sheath: Halogen-free compound
Shielded: Yes
Cable sheath colour: Grey (RAL 7001)
Shape of cable: Round
Without protective conductor
Number of Cores: 8 (4 pairs)
Conductor: Bare copper
Conductor cross section: 0.5 mm²
Nominal outer diameter; 9.2mm
Screened with Aluminium-laminated plastic foil
Weight: 135 kg/km
Max. conductor temperature, fixed installation: -30°C to 70°C
Max. conductor temperature, occasionally moved: -5°C to 50°C
Electrical / Insulation Parameters
Maximum operating voltage 300V (not for power applications)
Test voltage: Conductor / Conductor 800 V
Test voltage: Conductor / Shield 800 V
Conductor material: bare copper
Outer sheath: Halogen-free compound
Core Insulation: Halogen-free compound
Core identification: Colours
Outer sheath colour: Grey (Ral 7001)
Product Features
Flame retardant - Yes, IEC 60332-1-2. IEC 60332-3-24, IEC 60332-3-25
Hydrolysis resistant -
Chemical resistant -
Hydrolysis resistant -
Chemical resistant -
Halogen Free- Yes, EN 50267-2-1, EN 50267-2-2
Oil Resistant - No
UV Resistant - No
Weather Resistant -
PWIS-free - Yes
For continuous flexing - No
For torsional load - No
General Information
Not suitable for continual flexing application in power chains
With grey outer jacket
Halogen-free and highly flame retardant materials
Reduces the risk of flame propagation, high smoke density and toxic smoke
Ideal protection against electromagnetic interference thanks to static shielding
Classified fire behaviour according to EU Directive 305/2011 (BauPVO/CPR)
Can be used in dry and damp spaces
EAC Certified, CE marked
Lapp part number: 30017788
Length: 100M
