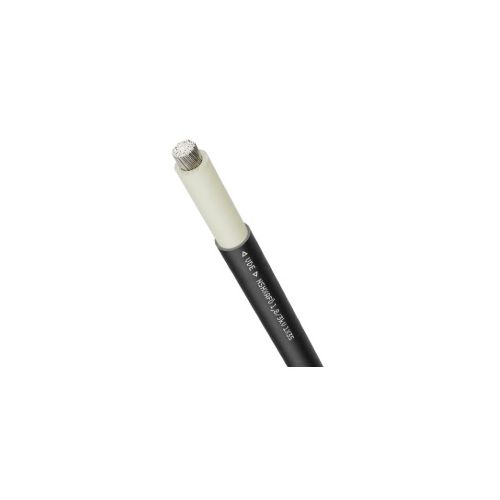

3022677 | NSHXAFO 1,8/3KV 1X10 BK | Harsh Conditions Cable
Flexible Single-conductor rubber cable, Number of Conductors: 1, Conductor Diameter: 10mm², Cable Outer Diameter: 11.0mm, Without GN/YE Protective conductor
| Complete Electronics Part No. | 3022677 |
|---|---|
| Manufacturers Part No. | 3022677 |
| Series: | NSHXAFO |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 10.0mm² |
| Rated Voltage: | 1.8 / 3KV |
| Cable Type: | Single-conductor rubber cable |
| Shielding: | Not Shielded |
| Protective Conductor: | No |
| Cable Jacket: | Halogen Free |
| Cable Length: | 100 Metres |
Description
3022677 | ÖLFLEX® NSHXAFO 1.8/3KV 1X10
Rubber Single Core Halogen Free Power and Control Cable
Number of Conductors: 1
Conductor Diameter: 10mm²
Cable Outer Diameter: 11.0mm
Without Protective Conductor
Conductor material: Tin-plated Copper
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Rubber
Outer Sheath material: Rubber
Outer Sheath colour: Natural
Conductor design: IEC 60228 class 5:-fine wire
Core insulation: Rubber
Outer Sheath material: Rubber
Outer Sheath colour: Natural
Nominal voltage: U0/U: 1.8/3 kV AC rms according to IEC
Current rating according to VDE 0298-4
Max. conductor resistance at 20°C: 0.0654 Ω/km
Temperature, fixed installation: -40°C to 90°C
Current rating according to VDE 0298-4
Max. conductor resistance at 20°C: 0.0654 Ω/km
Temperature, fixed installation: -40°C to 90°C
Chemical resistant - No
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - Yes acc. to EN 50267-2-1, EN 50267-2-2
Low-adhesion sheath surface -No
Oil-resistant - Yes acc. to VDE 0207-24
Ozone resistant: - No
Permanently immersible in water - No
PWIS-free - No
UV-resistant - No
Weather resistant: - No
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - Yes acc. to EN 50267-2-1, EN 50267-2-2
Low-adhesion sheath surface -No
Oil-resistant - Yes acc. to VDE 0207-24
Ozone resistant: - No
Permanently immersible in water - No
PWIS-free - No
UV-resistant - No
Weather resistant: - No
Cable certified in accordance with VDE type NSHXAFÖ, with ◁VDE▷ testing mark
Suitable for short circuit- and short-to-ground-proof installation up to 1000 V
For fixed installation in ducts and closed installation channels
Suitable for wiring inside control cabinets
Can be used in dry rooms
Suitable for short circuit- and short-to-ground-proof installation up to 1000 V
For fixed installation in ducts and closed installation channels
Suitable for wiring inside control cabinets
Can be used in dry rooms
Halogen free and highly flame retardant materials
Reduce the risk of flame propagation, high smoke density and toxic flue gases in the event of a fire.
Not suitable for torsional load (max strain:15 N/mm²)
Flexible use at temperatures down to -25°C
EAC certified, VDE certified - VDE 0250-606
Reduce the risk of flame propagation, high smoke density and toxic flue gases in the event of a fire.
Not suitable for torsional load (max strain:15 N/mm²)
Flexible use at temperatures down to -25°C
EAC certified, VDE certified - VDE 0250-606
Reel Length= 100M
Lapp part number: 3022677
