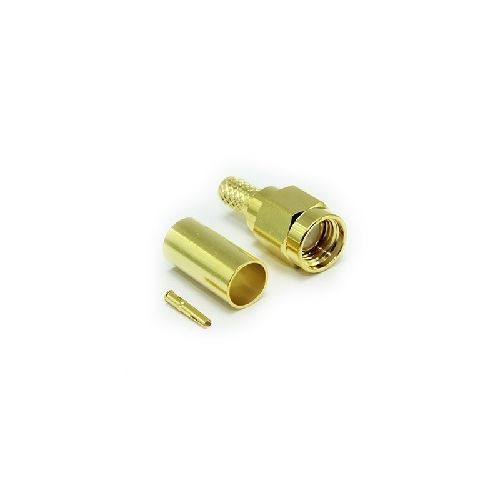

31-005-D3-AK | 31005D3AK | SMA Reverse Polarity Crimp Plug
SMA reverse polarity straight full crimp plug. With gold plated contact and body. For use with RG223 and similar cables in group AK.
| Complete Electronics Part No. | 31005D3AK |
|---|---|
| Manufacturers Part No. | 31-005-D3-AK |
| Type | Reverse Polarity |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 12.5GHz
- Dielectric Withstand Voltage 750 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-15
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 100
- Contact Retention: 27N min
- Cable Retention: 220N min
- Weight: 4.3g
- Mating Force: 23Ncm
- Un-Coupling Force: 23Ncm
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP67
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
