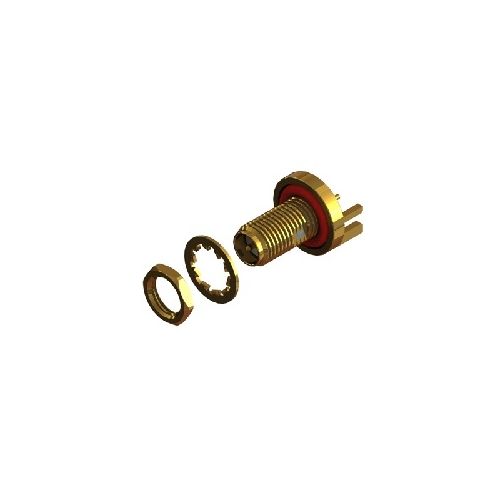

31-462-1-D3-1.6 | 314621D316 | Reverse Polarity PCB Bulkhead Jack
SMA reverse polarity, End Launch bulkhead jack for 1.6mm PCB Sealed to IP68 Un-Mated, with gold plated contact and body.
| Complete Electronics Part No. | 314621D316 |
|---|---|
| Manufacturers Part No. | 31-462-1-D3-1.6 |
| Type | Reverse Polarity |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 12GHz
- Dielectric Withstand Voltage 750 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-15
- RoHS3 Compliant
- Mating Cycles: 500
- Contact Retention: 27N min
- Cable Retention: 100N min
- Weight: 4.04g
- Mating Force: 23Ncn
- Un-Coupling Force: 23Ncn
- Operating Temperature: -55 to +155°C
- IP Rating (Un-Mated): IP68
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
