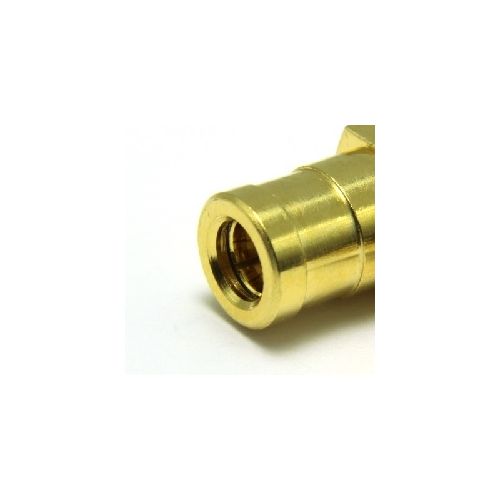

32-108-D3-HA | 32108D3HA | SMB R/A Solder / Solder Plug
SMB 50 ohm right angle direct solder plug for semi-rigid cable.Suitable for use with RG405 (0.085") and cables in group HA
| Complete Electronics Part No. | 32108D3HA |
|---|---|
| Manufacturers Part No. | 32-108-D3-HA |
| Male/Female: | Plug |
| Type | Right Angled |
| Impedance | 50 Ohm |
| Working Frequency | Up To 4.5 GHZ |
Description
Electrical Specification
- Impedance: 50Ohm
- Frequency Range: Up to 4GHz
- Dielectric Withstand Voltage 500 Veff
- Insulation Resistance 1000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-10
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Solder
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention: 200N min
- Weight:
- Mating Force: 62N max
- Un-Coupling Force: 62N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP30
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Phosphor Bronze
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
