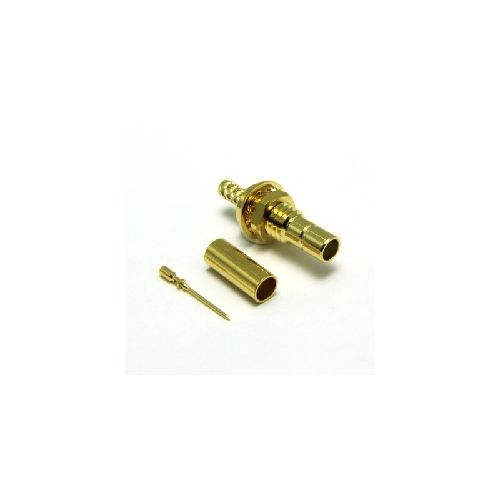

32-254-A3-AD | 32254A3AD | Rear Mount Bulkhead Crimp Jack
MB 50 ohm bulkhead mount full crimp jack, rear mounted with a single flat on the body, Suitable for RG174 and similar cables in group AD.
| Complete Electronics Part No. | 32254A3AD |
|---|---|
| Manufacturers Part No. | 32-254-A3-AD |
| Male/Female: | Jack |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Up To 4.5 GHZ |
Description
Electrical Specification
- Impedance: 50Ohm
- Frequency Range: Up to 4GHz
- Dielectric Withstand Voltage 500 Veff
- Insulation Resistance 1000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-10
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention: 100N min
- Weight:
- Mating Force: 62N max
- Un-Coupling Force: 62N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP30
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
