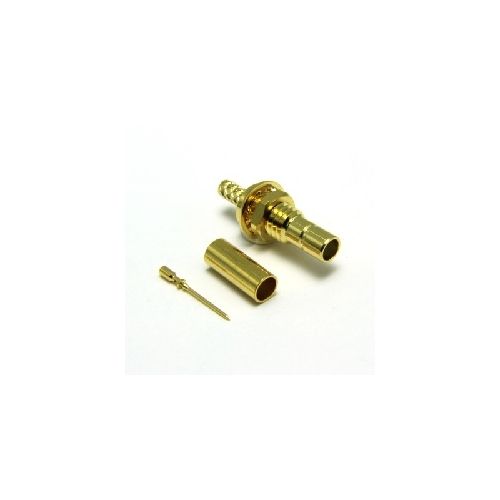

32-254-D3-AB | 32254D3AB | Rear Mount Bulkhead Crimp Jack
MB 50 ohm bulkhead mount full crimp jack, rear mounted, adapted for use with 75 ohm cable Suitable for RG179 and similar cables in group AB
| Complete Electronics Part No. | 32254D3AB |
|---|---|
| Manufacturers Part No. | 32-254-D3-AB |
| Male/Female: | Jack |
| Type | Panel / Bulkhead Mount |
| Impedance | 75 Ohm |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance: 75Ohm
- Frequency Range: Up to 1GHz
- Dielectric Withstand Voltage 500 Veff
- Insulation Resistance 1000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-10
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 250
- Contact Retention: 10N min
- Cable Retention: 60N min
- Weight:
- Mating Force: 62N max
- Un-Coupling Force: 62N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP30
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
