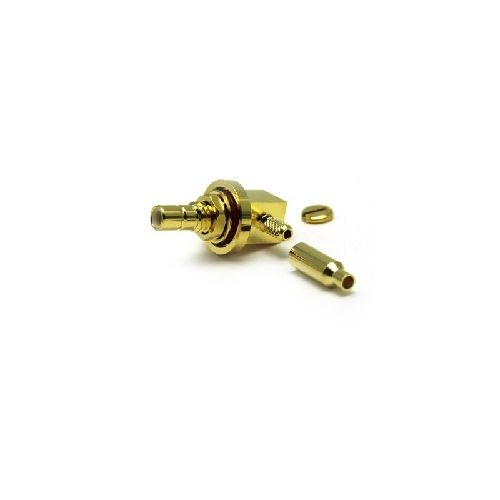

32-271-D10-AA | 32271D10AA | R/A Bulkhead Solder/Crimp Jack
SMB 50 ohm Right Angle Rear Mounted bulkhead mount solder crimp jack IP68 unmated, Hermetically Sealed and tested to 50m, RG178 and similar cables in group AA
| Complete Electronics Part No. | 32271D10AA |
|---|---|
| Manufacturers Part No. | 32-271-D10-AA |
| Male/Female: | Jack |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Up To 4.5 GHZ |
Description
Electrical Specification
- Impedance: 50Ohm
- Frequency Range: Up to 4GHz
- Dielectric Withstand Voltage 500 Veff
- Insulation Resistance 1000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-10
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 100N min
- Weight: 4.83g
- Mating Force: 62N max
- Un-Coupling Force: 62N max
- Operating Temperature: -55 to +155°C
- IP Rating (UnMated): IP68 3m x 2 Hours ( Tested to 50m )
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
