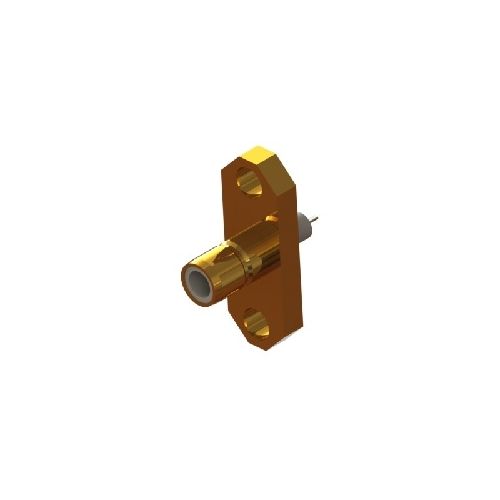

32-369-D3 | 32369D3 | 2 Hole Flange Mounting Jack
SMB 50 ohm 2 hole flange mount jack (Tab Contact). The connector body and tab contact are gold plated.
| Complete Electronics Part No. | 32369D3 |
|---|---|
| Manufacturers Part No. | 32-369-D3 |
| Male/Female: | Jack |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Up To 4.5 GHZ |
Description
Electrical Specification
- Impedance: 50Ohm
- Frequency Range: Up to 4GHz
- Dielectric Withstand Voltage 500 Veff
- Insulation Resistance 1000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-10
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination:
- Mating Cycles: 250
- Contact Retention: 10N min
- Weight:
- Mating Force: 62N max
- Un-Coupling Force: 62N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP30
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
