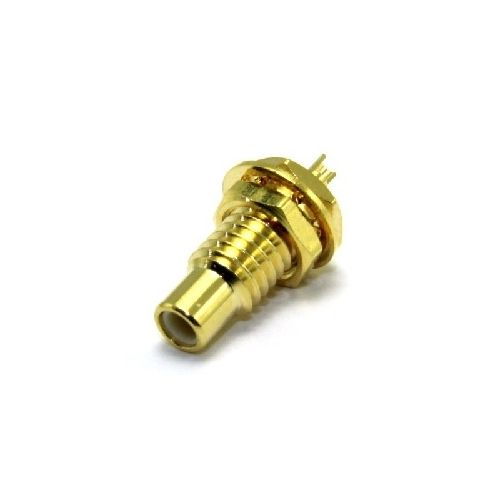

34-350-D3 | 34350D3 | SMC Straight Bulkhead Jack
SMC 50 ohm SMC rear mount straight bulkhead jack. With soldered gold plated centre contact and body.
| Complete Electronics Part No. | 34350D3 |
|---|---|
| Manufacturers Part No. | 34-350-D3 |
| Male/Female: | Jack |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Up To 4.5 GHZ |
Description
Electrical Specification
- Impedance: 50Ohm
- Frequency Range: Up to 4GHz
- Dielectric Withstand Voltage 500 Veff
- Insulation Resistance 1000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-10
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Mating Cycles: 250
- Contact Retention: 18N min
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP44
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
