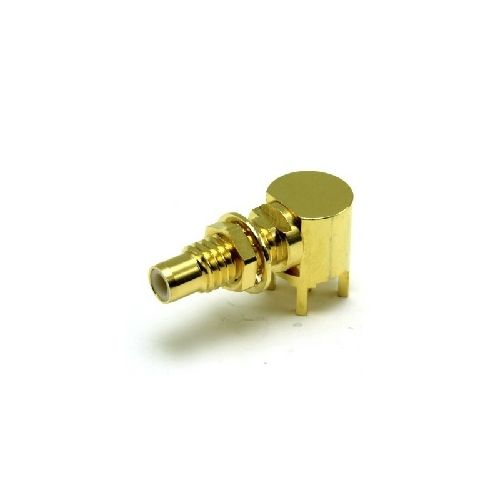

34-468-D3 | 34468D3 | SMC R/A PCB Bulkhead Jack
SMC 50 ohm right angle PCB bulkhead jack, with gold plated centre and outer contacts Supplied complete with gold plated nut and washer
| Complete Electronics Part No. | 34468D3 |
|---|---|
| Manufacturers Part No. | 34-468-D3 |
| Male/Female: | Jack |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
- Impedance: 50Ohm
- Frequency Range: Up to 3GHz
- Dielectric Withstand Voltage 500 Veff
- Insulation Resistance 1000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-10
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Mating Cycles: 250
- Weight: 4.12g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP44
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 1
