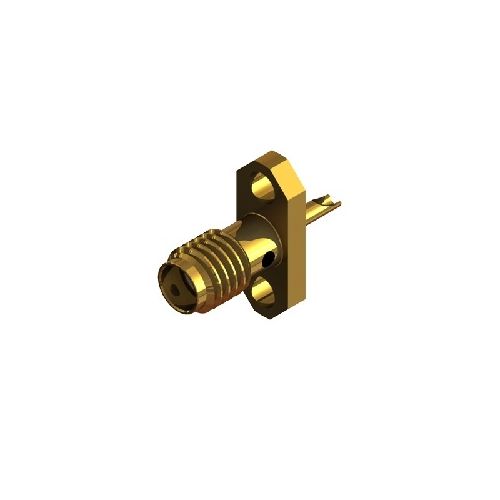

36-368-D3 | 36368D3 | SSMA 2 Hole Flange Jack
SMA Gold Plated Stainless Steel 2 Hole Flange Jack With a 0.9mm dia Solder Bucket
| Complete Electronics Part No. | 36368D3 |
|---|---|
| Manufacturers Part No. | 36-368-D3 |
| Male/Female: | Jack |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency: Up to 18GHz
- Dielectric W/V: 750 Veff
- Insulation: 5000 M Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: N/A
- Contact Retention: 22 N min
- Mating Cycles: 500
- Weight: 1.04g
- Operating Temperature: -30 to +105°C
- IP Rating (Mated):
Materials
- Centre Contact: Gold Plated Beryllium Copper
- Outer Contact: Gold Plated Stainless Steel
- Insulator: PTFE
