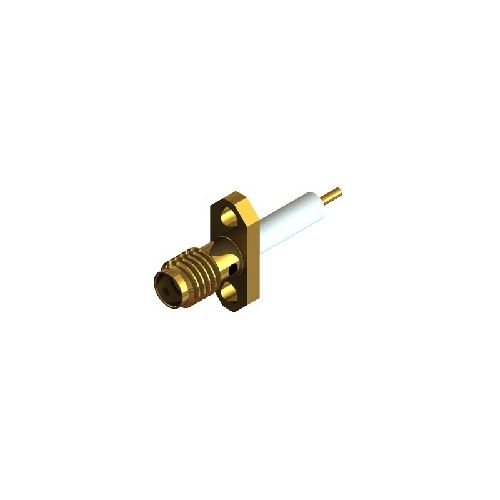

36-370-D3-9.5 | 36370D395 | SSMA 2 Hole Flange Jack

SSMA Gold Plated Stainliss Steel 2 Hole Flange Jack With 9.5 mm extended Dielectric and a 0.9 mm Dia Solder Post
More Information
Complete Electronics Part No. 36370D395
Manufacturers Part No. 36-370-D3-9.5
Male/Female: Jack
Type Panel / Bulkhead Mount
Impedance 50 Ohm
Working Frequency Ultra HD (12GHz +)
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency: Up to 18GHz
  • Dielectric W/V: 750 Veff
  • Insulation: 5000 M Ohm

Mechanical Specification

  • RoHS3 Compliant
  • Centre Contact Termination: Solder
  • Outer Contact Termination: N/A
  • Contact Retention: 22 N min
  • Mating Cycles: 500
  • Weight:  1.18g
  • Operating Temperature: -30 to +105°C
  • IP Rating (Mated):

Materials

  • Centre Contact: Gold Plated Beryllium Copper
  • Outer Contact:   Gold Plated Stainless Steel
  • Insulator: PTFE
