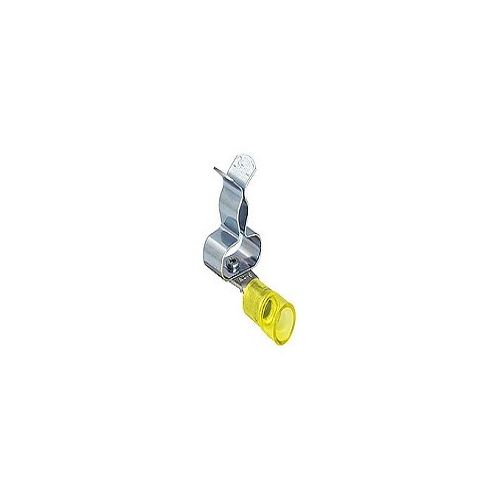

36298.2 | RCL-SKL 4-6 | EMC Shield Clamp
EMC Shield Clamp with Cable Lug, Shield Clamping Range: 3-12mm, Cable Lug Diameter: 4-6mm²
| Complete Electronics Part No. | 36298.2 |
|---|---|
| Manufacturers Part No. | 36298.2 |
| Shield Clamp Series | RCL / SKL |
| Mounting: | Cable |
| Number of Clamps: | Single Cable Clamp |
| Shield Diameter: | 3 - 12mm |
| Shield Clamp Type | Shield Clamp with Cable Lug |
Description
EMC Shield Clamp
Mounted on ring cable lugs
Shield Diameter 3-12mm
Ring Cable Lug Diameter 4-6mm²
Cable Lug Colour: Yellow
Shield Clamp Material: Spring Steel, zinc plated
Operating Temperature -30°C to 120°C (Static)
Pack Unit: 25
icotek Order Number: 36298.2
