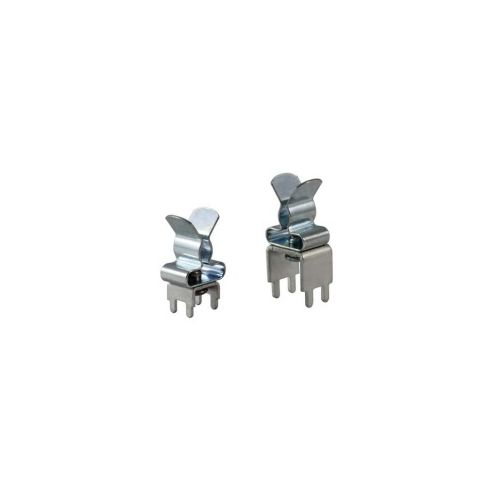

36656.2 | PCB-4-V-12,5/SKL 3 - 6 | Shield Clamp
PCB | SKL Shield Clamps, For Earthing Single Cable Shields, Solder Pins for assembly onto Printed Circuit Boards, Shield Diameter: 3 to 6mm
| Complete Electronics Part No. | 36656.2 |
|---|---|
| Manufacturers Part No. | 36656.2 |
| Shield Clamp Series | PCB |
| Mounting: | PCB - Straight |
| Number of Clamps: | Single Cable Clamp |
| Shield Diameter: | 3 - 6mm |
| Shield Clamp Type | Shield Clamp |
Description
PCB | SKL Shield Clamps
For Earthing Single Cable Shields
Solder Pins for assembly onto Printed Circuit Boards
Shield Diameter: 3 to 6mm
Height:12.5mm
Pin Height: 4.0mm
Pin Width: 1.6mm
Pin Depth: 1.0mm
Drill Hole Diameter: 1.8mm
Material: SKL Clamp: Spring Steel, Zinc Plated
PCB Foot Material: Brass, Tin Plated
Pack Unit: 10
icotek Order Number: 36656.2
