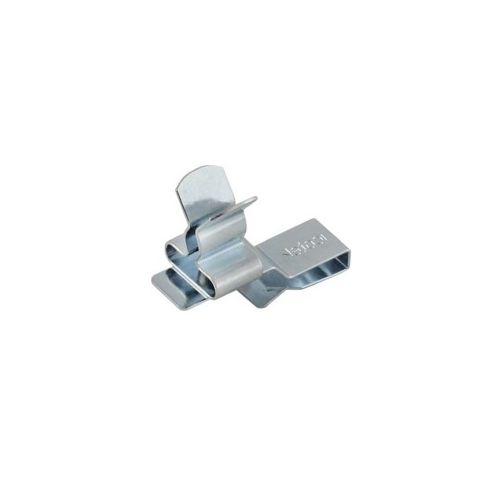

36782.3 | PFK-B|SKL 6 - 8 | Shield Clamp
PFK | SKL Shield Clamps, Pluggable, For Earthing Single Cable Shields, Shield Diameter: 6 to 8mm, For Wall / Sheet Thickness: 2 to 3mm
| Complete Electronics Part No. | 36782.3 |
|---|---|
| Manufacturers Part No. | 36782.3 |
| Shield Clamp Series | PFK / PFKZ |
| Mounting: | Clamp |
| Number of Clamps: | Single Cable Clamp |
| Shield Diameter: | 6 - 8mm |
| Shield Clamp Type | Shield Clamp |
Description
PFK | SKL Shield Clamps, Pluggable
For Earthing Single Cable Shields
Shield Diameter: 6 to 8mm
For Wall / Sheet Thickness: 2 to 3mm
Fixing:Clamped on the sheet
The claws provide a secure grip, even in case of vibrations.
SKL Clamp Material: Spring Steel, Zinc Plated
PFK Foot Material: Spring Steel
Tool Free Mounting
Permanently maintain contact to the cable shield
Pack Unit: 10
icotek Order Number: 36782.3
