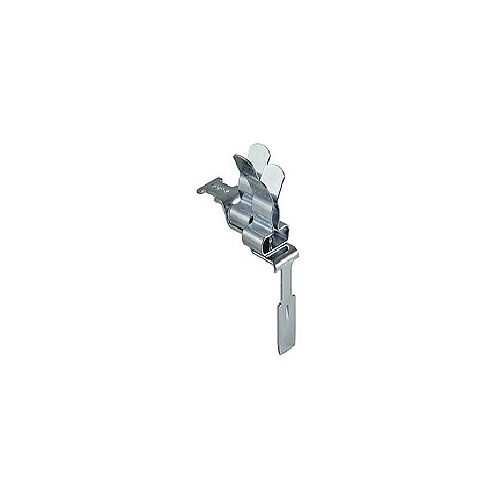

37505.01 | STFZ2|01 | EMC Terminal Clamp
EMC Terminal Clamp With Two Shield Clamps, For cable guidance and grounding, Shield Diameter Pos. 1: Blank , Shield Diameter Pos. 2: 1.5 - 3mm
| Complete Electronics Part No. | 37505.01 |
|---|---|
| Manufacturers Part No. | 37505.01 |
| Shield Clamp Series | STFZ2 |
| Mounting: | Module |
| Number of Clamps: | Double Cable Clamp |
| Shield Diameter Pos. 2: | 1.5 - 3mm |
| Shield Diameter: | Blank |
| Shield Clamp Type | Terminal Clamp |
Description
EMC Terminal Clamp With Two Shield Clamps
For cable guidance and grounding
Shield Diameter Pos. 1: Blank
Shield Diameter Pos. 2: 1.5 - 3mm
SKL Clamp: Spring steel, zinc plated
STFZ Foot: Spring Steel
Earthing for decentralized bus modules
Suitable for Various Brands
Packing Unit: 10
Insert Tool Order Number: 61430
icotek order number: 37505.01
