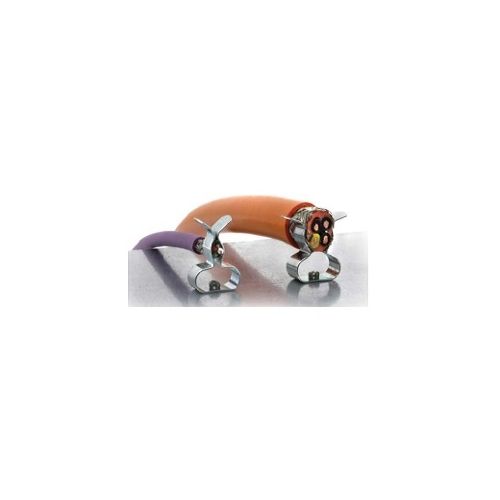

37630 | PFSZ-M/MSKL 3-12 | EMC Shield Clamp
EMC Shield Clamp, Clamping Range: 3-12mm, L x W x H: 38 x 15.1 x 28.7mm, Snap Mount on 10 x 3mm Bus Bar
| Complete Electronics Part No. | 37630 |
|---|---|
| Manufacturers Part No. | 37630 |
| Shield Clamp Series | PFSZ |
| Mounting: | Bus Bar 10 x 3mm |
| Number of Clamps: | Single Cable Clamp With Strain Relief |
| Shield Diameter: | 3 - 12mm |
| Shield Clamp Type | Shield Clamp |
Description
EMC Shield Clamp
Clamping Range: 3-12mm
L x W x H: 38 x 15.1 x 28.7mm
Snap Mount on 10 x 3mm Bus Bar
Material: Spring Steel
Shock and vibration resistant
Partially with integrated strain relief
Requires no adjustments
Permanently maintains contact to the cable shield
Maintenance free
icotek Order Number: 37630
EAN: 4251269316722
