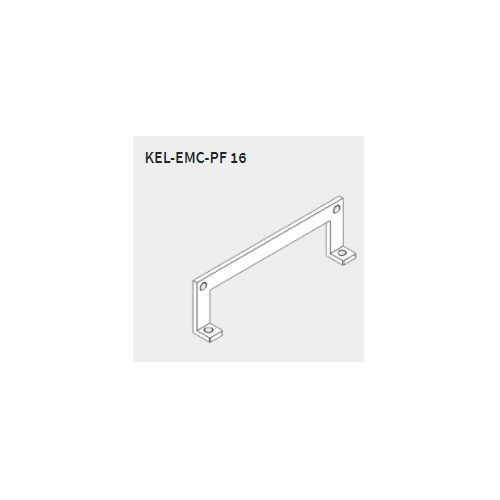

39170 | KEL-EMC-PF-16 | Cable Assembly Bracket
Cable Assembly, EMC bracket combined with EMC shield clamp ,Length L1 = 113mm, Length L2 = 103mm, Material Sheet steel, galvanically zinc plated, Length: 115mm
| Complete Electronics Part No. | 39170 |
|---|---|
| Manufacturers Part No. | 39170 |
| Category | Bracket |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL EMC |
Description
KEL-EMC-PF 16 Cable Assembly Bracket
Length L1: 115 mm
Length L2: 103 mm
Width: 35 mm
Height: 13 mm
Mounting Height: 13 mm
Screw type mounting
P U: 1
icotek order number: 39170
EAN: 4251269305986
Note L1 is the overall length and L2 is the internal measurement
