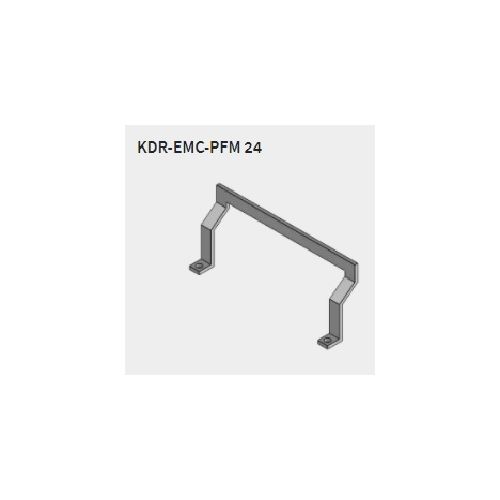

39191 | KDR-EMC-PFM 24 | Cable Assembly Bracket
KDR-EMC-PFM 24 Cable Assembly Bracket, Designed for high density applications, Direct, easy and quick contact to the enclosure, Length: 140mm
| Complete Electronics Part No. | 39191 |
|---|---|
| Manufacturers Part No. | 39191 |
| Category | Bracket |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL EMC |
Description
KEL-EMC-PFM 24 Cable Assembly Bracket
- Length L1: 140 mm
- Length L2: 130 mm
- Width: 60 mm
- Height: 30.5 mm
- Mounting Height: 30.5 mm
- No. of Screw Holes: 2
- Diam. of Screw Holes: 5.5mm
- P U: 1
- icotek order number: 39191
- EAN: 4251269321528
Note: L1 is the overall length and L2 is the internal measurement
