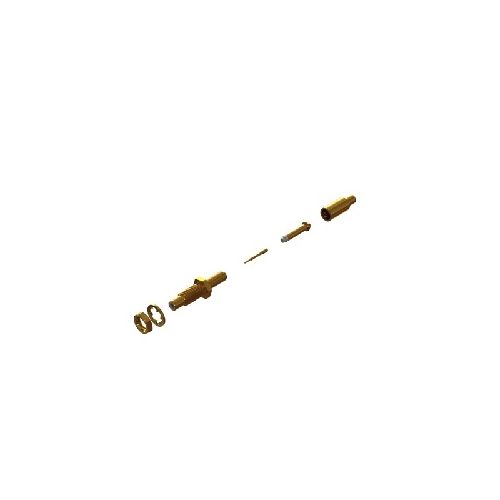

40-039-D3-AA | 40039D3AA | SSMC Bulkhead Jack
SSMC Bulkhead Jack (SSMC Jacks has a Male Solder Contact) Centre Contacts and Crimp Tube are gold plated
| Complete Electronics Part No. | 40039D3AA |
|---|---|
| Manufacturers Part No. | 40-039-D3-AA |
| Male/Female: | Jack |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency: Up to 6GHz
- Dielectric W/V: 750 Veff
- Insulation: 5000 M Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Crimp
- Contact Retention: 18 N min
- Cable Retention: 50 N min
- Mating Cycles: 500
- Weight: 1.31g
- Operating Temperature: -5 to +105°C
- IP Rating (Mated):
Materials
- Centre Contact: Gold Plated Brass
- Outer Contact: Gold Plated Brass
- Crimp Sleeve: Gold Plated Brass
- Insulator: PTFE
