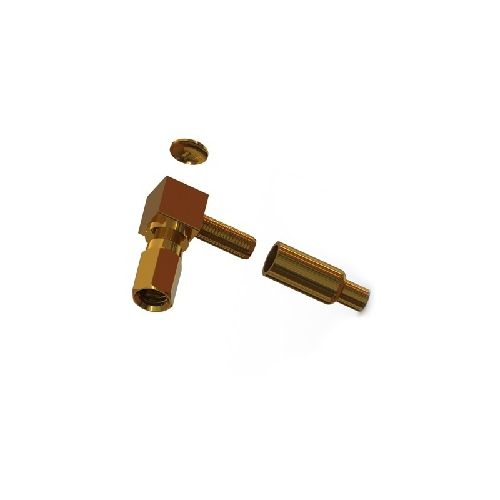

40-105-D3-AA | 40105D3AA | SSMC R/A Solder/Crimp Plug
SSMC Right Angle Plug (SSMC Plugs have a Female Contact) Solder Centre Contact with Crimp Outer,
| Complete Electronics Part No. | 40105D3AA |
|---|---|
| Manufacturers Part No. | 40-105-D3-AA |
| Male/Female: | Plug |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency: Up to 6GHz
- Dielectric W/V: 750 Veff
- Insulation: 5000 M Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Solder
- Outer Contact Termination: Crimp
- Contact Retention: 18 N min
- Cable Retention: 50 N min
- Mating Cycles: 500
- Weight: 1.81g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated):
Materials
- Centre Contact: Gold Plated Brass
- Outer Contact: Gold Plated Brass
- Crimp Sleeve: Gold Plated Brass
- Insulator: PTFE
