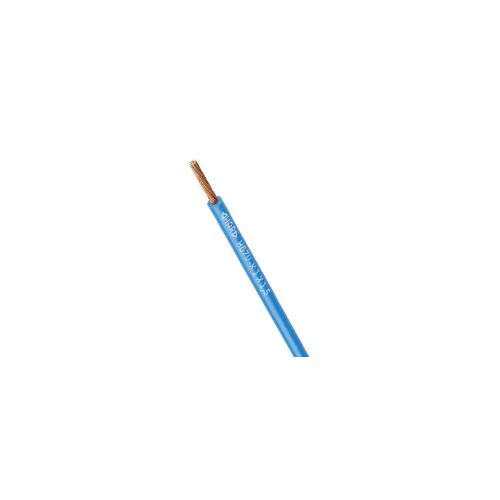

4150802 | Multi Standard MS 2.2 1x10 BU | Single Core Cable
PVC Power and Control Cable, Multi-standard cable, Conductor Cross Section: 10mm², Conductor Outer Diameter: 6.8mm, Core Colour: Blue
| Complete Electronics Part No. | 4150802 |
|---|---|
| Manufacturers Part No. | 4150802 |
| Control Cabinet Series | Multi Standard MS 2.2 (was SC 2.2) |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 10.0mm² |
| Rated Voltage: | 450 / 750 V |
| Core Colour: | Blue |
Description
PVC Power and Control Cable - Single Core
Multi-standard cable
Conductor Cross Section: 10mm²
Conductor Outer Diameter: 6.8mm
Core Colour: Blue
Fire behaviour according to EU Directive 305/2011
Flame-Retardant according to UL VW1/CSA FT1
Oil-resistant
Special PVC-based core insulation
Harmonised design H07V2-K
UL/CSA certification
UL/CSA certification
Nominal voltage: HAR / IEC: U0/U: 450/750 V
Temperature Range Fixed Install: HAR/IEC: -40°C to +90°C
Temperature Range Fixed Install: to 105°C according to UL AWM
Cable Length: 100M
Lapp Part Number: 4150802
