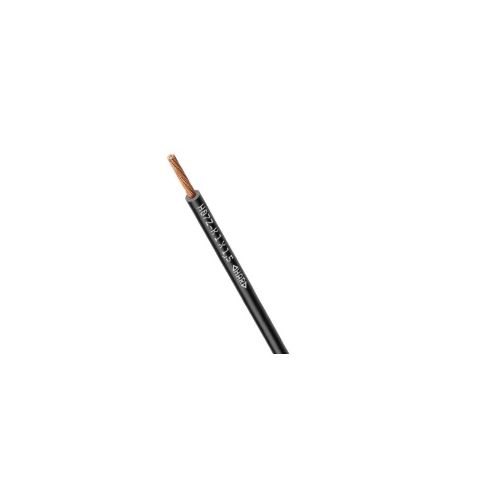

4160501K | MULTI-STANDARD MS 2.1 EMBOSS 1X2,5 BK | Single Core Cable
Multi-Standard SC 2.1 Cable, Core Cross Section 2.5mm², Cable Outer Diameter: 4mm, Core Colour: Black, PVC: HAR-certified; UL listed
| Complete Electronics Part No. | 4160501K |
|---|---|
| Manufacturers Part No. | 4160501K |
| Control Cabinet Series | Multi Standard MS 2.1 (was SC 2.1) |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 2.5mm² |
| Rated Voltage: | 450 / 750 V |
| Core Colour: | Black |
Description
Fire behaviour according to EU Directive 305/2011
Flame-retardant according IEC 60332-1-2
Flame-retardant according to UL VW1, CSA FT1
Oil-resistant
PWIS-free
Multi-Standard MS 2.1 Single Core Cable
Power and Control Cable
Core Cross Section 2.5mm²
Cable Outer Diameter: 4mm
Core Colour: Black
Fire behaviour according to EU Directive 305/2011
Flame-retardant according IEC 60332-1-2
Flame-retardant according to UL VW1, CSA FT1
Oil-resistant
PWIS-free
Special PVC-based core insulation
Fine-wire strand made of tinned-copper wires (IEC 60228 class 5)
Harmonised European type H07V-K
UL/CSA certification
HAR-certified
Fine-wire strand made of tinned-copper wires (IEC 60228 class 5)
Harmonised European type H07V-K
UL/CSA certification
HAR-certified
Nominal voltage: HAR / IEC: U0/U: 450/750 V
Temperature Range, Fixed Install: -40°C to +80°C
Temperature Range, Fixed Install, UL (AWM) : -40°C to +105°C
Temperature Range, Fixed Install: -40°C to +80°C
Temperature Range, Fixed Install, UL (AWM) : -40°C to +105°C
Cable Length: 900M
Lapp Order Number: 4160501K
