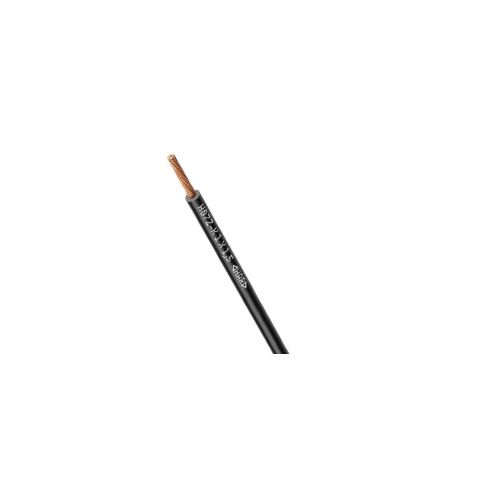

4180601 | MULTI-STANDARD MS 1 1X1 BK | Single Core Cable
Multi-Standard single core Cable, Conductor Cross Section: 1.0mm², Cable Outer Diameter: 2.8mm, Core Colour: Black, PVC: HAR-certified; UL listed
| Complete Electronics Part No. | 4180601 |
|---|---|
| Manufacturers Part No. | 4180601 |
| Control Cabinet Series | Multi Standard MS 1 (was SC 1) |
| Number of Conductors: | 1 |
| Conductor Cross Section: | 1.0mm² |
| Rated Voltage: | 300 / 500 V |
| Core Colour: | Black |
Description
Fine-wire strand made of tinned-copper wires (IEC 60228 class 5)
Special PVC-based core insulation
Harmonised European type H05V-K
Suitable for wiring inside control cabinets
Nominal voltage: HAR / IEC: U0/U: 300/500 V
Rated Voltage: 300 V AC rms according to UL AWM
Temperature Range, Fixed Install: -40°C to +70°C (IEC)
Temperature Range, Fixed Install, UL (AWM) : -40°C to +105°C
Multi-Standard MS 1 single core cable
Power and Control Cable
Conductor Cross Section: 1.0mm²
Cable Outer Diameter: 2.8mm
Core Colour: Black
Flame-retardant according to IEC 60332-1-2, UL VW-1, CSA FT1
Fire behaviour according to EU Directive 305/2011
Oil-resistant
PWIS Free
Fire behaviour according to EU Directive 305/2011
Oil-resistant
PWIS Free
Fine-wire strand made of tinned-copper wires (IEC 60228 class 5)
Special PVC-based core insulation
Harmonised European type H05V-K
Suitable for wiring inside control cabinets
Nominal voltage: HAR / IEC: U0/U: 300/500 V
Rated Voltage: 300 V AC rms according to UL AWM
Temperature Range, Fixed Install: -40°C to +70°C (IEC)
Temperature Range, Fixed Install, UL (AWM) : -40°C to +105°C
Cable Length: 100M
Lapp Order Number: 4180601
