42141.200 |KEL 16 E Black | icotek Cable Entry Frame
KEL 16 E Cable Entry Frame, With an additional middle frame ,Number of Grommets: 12 Small, Flat Rubber Gasket included
| Complete Electronics Part No. | 42141.200 |
|---|---|
| Manufacturers Part No. | 42141.200 |
| Number of Cables: | max 48 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL 16 |
Description
KEL 16 E Cable Entry Frame
High cable density, wide variety of grommets
Number of Grommets: 12 KT Small
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C

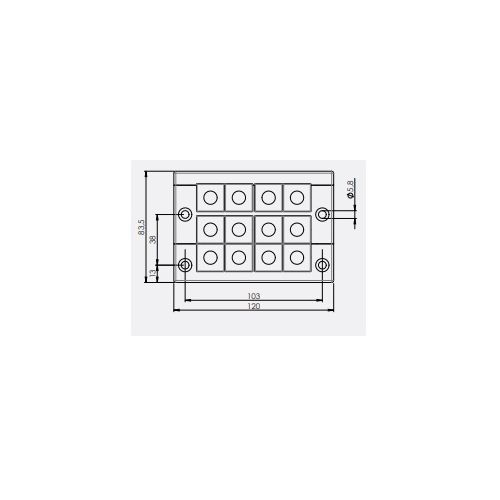

Length: 120mm
Width: 84
Height: 17mm
Cut out size: 86 x 66mm
Max No. cables: 48
Max Cable Diameter 17mm
Width: 84
Height: 17mm
Cut out size: 86 x 66mm
Max No. cables: 48
Max Cable Diameter 17mm
Halogen-free and silicone-free
Mounting Screws: Stainless Steel (V2A)
Snap-in with KEL-SNAP
Packing Unit: 1
Icotek Order Number: 42141.200
EAN: 4251269307720
