42145 | KEL 16/16 Black | icotek Cable Entry Frame

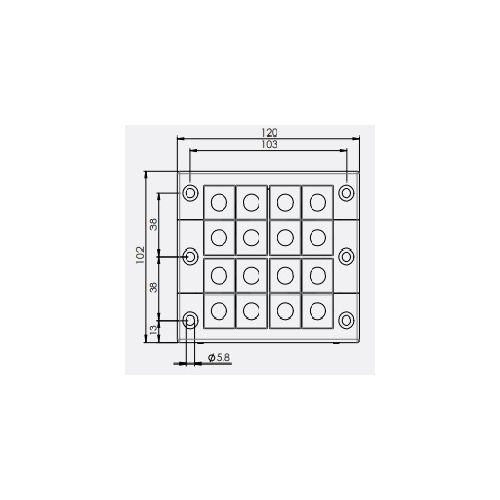

KEL 16 MT Cable Entry Frame, With an additional middle frame ,Number of Grommets: 16 Small, Cut-Out Dimension: 86 x 82mm
| Complete Electronics Part No. | 42145 |
|---|---|
| Manufacturers Part No. | 42145 |
| Number of Cables: | max 64 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL 16 |
Description
KEL 16 MT Cable Entry Frame
With an additional middle frame
Number of Grommets: 16 KT Small
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Length: 120mm
Width: 102
Height: 17mm
Cut out size: 86 x 82mm
Max No. cables: 64
Max Cable Diameter 17mm
Width: 102
Height: 17mm
Cut out size: 86 x 82mm
Max No. cables: 64
Max Cable Diameter 17mm
Halogen-free and silicone-free
Mounting Screws: Mild steel, galvanically zinc plated
Snap-in with KEL-SNAP
Packing Unit: 1
Icotek Order Number: 42145
EAN: 4251269307775
