42149.200 | KEL 16/24 -2MT black V2A | Cable Entry Frame
KEL 16-2 MT Cable Entry Frame, With 2 additional middle frames ,Number of Grommets: 24 Small, Cut-Out Dimension: 86 x 126mm
| Complete Electronics Part No. | 42149.200 |
|---|---|
| Manufacturers Part No. | 42149.200 |
Description
KEL 16-2 MT Cable Entry Frame
With 2 additional middle frames
Number of Grommets: 24 KT Small
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C

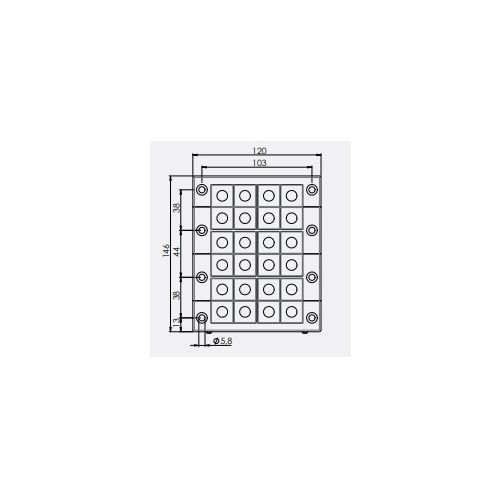

Length: 120mm
Width: 146
Height: 17mm
Cut out size: 86 x 126mm
Max No. cables: 96
Max Cable Diameter 17mm
Width: 146
Height: 17mm
Cut out size: 86 x 126mm
Max No. cables: 96
Max Cable Diameter 17mm
Halogen-free and silicone-free
Mounting Screws: Stainless Steel (V2A)
Snap-in with KEL-SNAP
Packing Unit: 1
Icotek Order Number: 42149.200
EAN: 4251269307843
