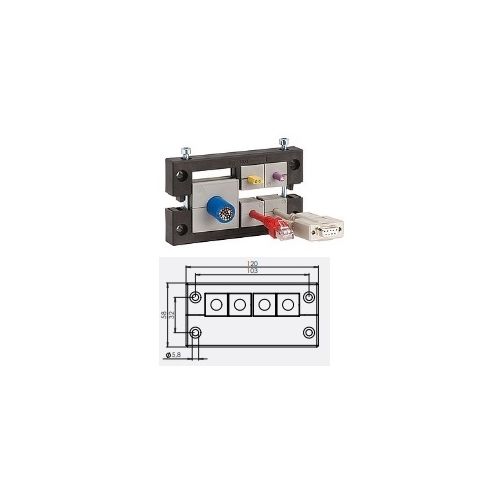

42164.200 | KEL 16/4 black V2A | icotek Cable Entry Frame
Centrally Split Cable Entry System, For Routing Cables with Connectors ,Number of Grommets: 4 Small, Flat Rubber Gasket included, max 16 cables
| Complete Electronics Part No. | 42164.200 |
|---|---|
| Manufacturers Part No. | 42164.200 |
| Number of Cables: | max 16 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL 16 |
Description
Length: 120mm
Width: 58mm
Height: 17mm
Cut out size: 86 x 36mm
Max No. cables: 16
Max Cable Diameter 35mm
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Stainless Steel (V2A)
Snap-in with KEL-SNAP
Packing Unit: 10
Icotek Order Number: 42164.200
EAN: 4251269307881
Centrally Split Cable Entry System
For Routing Cables with Connectors
Number of Grommets: 4 KT Small
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Length: 120mm
Width: 58mm
Height: 17mm
Cut out size: 86 x 36mm
Max No. cables: 16
Max Cable Diameter 35mm
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Stainless Steel (V2A)
Snap-in with KEL-SNAP
Packing Unit: 10
Icotek Order Number: 42164.200
EAN: 4251269307881
