42216 | KEL 10/6 black | icotek Cable Entry Frame
Split Cable Entry System, For Routing Cables with Connectors, Grommets: 6 KT Small, Inc flat Rubber Gasket, Length 147mm, Width 58mm, Height 17mm
| Complete Electronics Part No. | 42216 |
|---|---|
| Manufacturers Part No. | 42216 |
| Number of Cables: | max 24 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL 10 |
Description

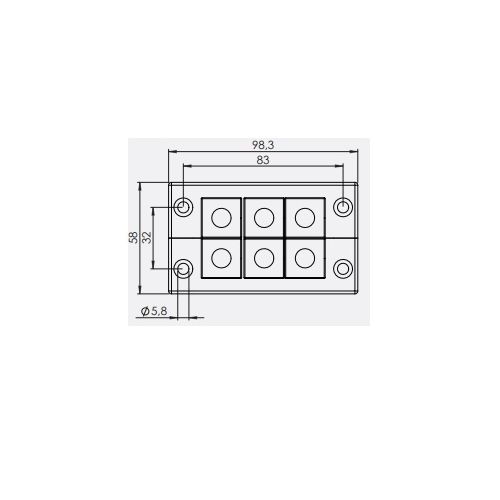

Length: 98mm
Width: 58mm
Height: 17mm
Cut out size: 65 x 36mm
Max No. cables: 24
Max Cable Diameter 17mm
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Mild steel, galvanically zinc plated
Snap-in with KEL-SNAP
Packing Unit: 10
Icotek Order Number: 42216
EAN: 4251269308055
Centrally Split Cable Entry System
For Routing Cables with Connectors
Number of Grommets: 6 KT Small
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Length: 98mm
Width: 58mm
Height: 17mm
Cut out size: 65 x 36mm
Max No. cables: 24
Max Cable Diameter 17mm
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Mild steel, galvanically zinc plated
Snap-in with KEL-SNAP
Packing Unit: 10
Icotek Order Number: 42216
EAN: 4251269308055
