42225.200 | KEL 24/14-MT black V2A | Cable Entry Frame
KEL 24-MT Cable Entry Frame, With an additional middle frame ,Number of Grommets: 12 Small + 2 Large, Cut-Out Dimension: 82 x 112mm
| Complete Electronics Part No. | 42225.200 |
|---|---|
| Manufacturers Part No. | 42225.200 |
| Number of Cables: | max 48 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL 24 |
Description
KEL 24-MT Cable Entry Frame
With an additional middle frame
Number of Grommets: 12 KT Small + 2 KT Large
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C

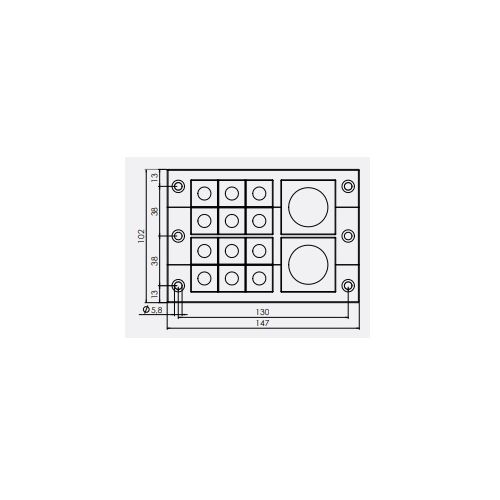

Length: 147mm
Width: 102
Height: 17mm
Cut out size: 112 x 82mm
Max No. cables: 48
Max Cable Diameter 35mm
Width: 102
Height: 17mm
Cut out size: 112 x 82mm
Max No. cables: 48
Max Cable Diameter 35mm
Halogen-free and silicone-free
Mounting Screws: Stainless Steel (V2A)
Snap-in with KEL-SNAP
Packing Unit: 1
Icotek Order Number: 42225.200
EAN: 4251269308161
