42227 | KEL 24/24-2MT black | icotek Cable Entry Frame
KEL 24-2MT Cable Entry Frame, With 2 additional middle frames ,Number of Grommets: 22 Small +2 Large, Cut-Out Dimension: 126 x 112mm
| Complete Electronics Part No. | 42227 |
|---|---|
| Manufacturers Part No. | 42227 |
| Number of Cables: | max 24 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL 24 |
Description
KEL 24-2MT Cable Entry Frame
With 2 additional middle frames
Number of Grommets: 22 KT Small +2 KT Large
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to + 140°C

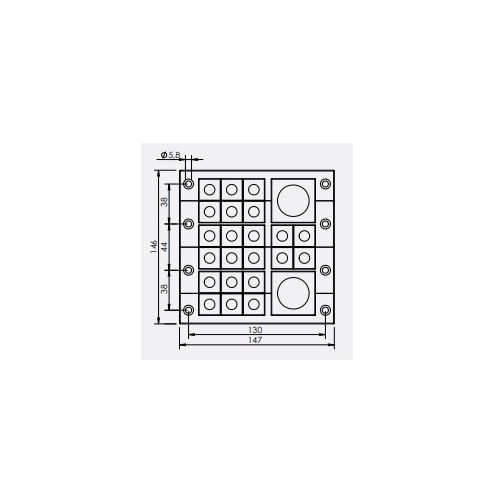

Length: 147mm
Width: 146
Height: 17mm
Cut out size: 112 x 126mm
Max No. cables: 90
Max Cable Diameter 35mm
Width: 146
Height: 17mm
Cut out size: 112 x 126mm
Max No. cables: 90
Max Cable Diameter 35mm
Halogen-free and silicone-free
Mounting Screws: Mild steel, galvanically zinc plated
Snap-in with KEL-SNAP
Packing Unit: 1
Icotek Order Number: 42227
EAN: 4251269308192
