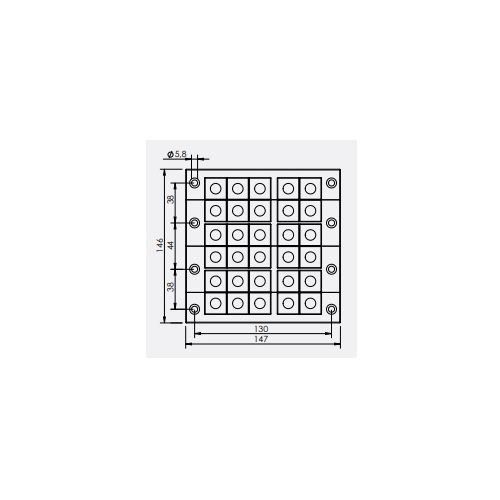

42234 | KEL 24/30-2MT black | icotek Cable Entry Frame
KEL 24-2MT Cable Entry Frame, With 2 additional middle frames ,Number of Grommets: 30 Small, Cut-Out Dimension: 126 x 112mm
| Complete Electronics Part No. | 42234 |
|---|---|
| Manufacturers Part No. | 42234 |
| Number of Cables: | max 120 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL 24 |
Description
KEL 24-2MT Cable Entry Frame
With 2 additional middle frames
Number of Grommets: 30 KT Small
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Length: 147mm
Width: 146
Height: 17mm
Cut out size: 112 x 126mm
Max No. cables: 120
Max Cable Diameter 17mm
Width: 146
Height: 17mm
Cut out size: 112 x 126mm
Max No. cables: 120
Max Cable Diameter 17mm
Halogen-free and silicone-free
Mounting Screws: Mild steel, galvanically zinc plated
Snap-in with KEL-SNAP
Packing Unit: 1
Icotek Order Number: 42234
EAN: 4251269308253
