42247 | KEL 24/7 black | icotek Cable Entry Frame
Split Cable Entry System, For Routing Cables with Connectors, Grommets: 6 KT Small + 1 KT Large, Length 147mm, Width 58mm, Height 17mm
| Complete Electronics Part No. | 42247 |
|---|---|
| Manufacturers Part No. | 42247 |
| Number of Cables: | max 25 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL 24 |
Description

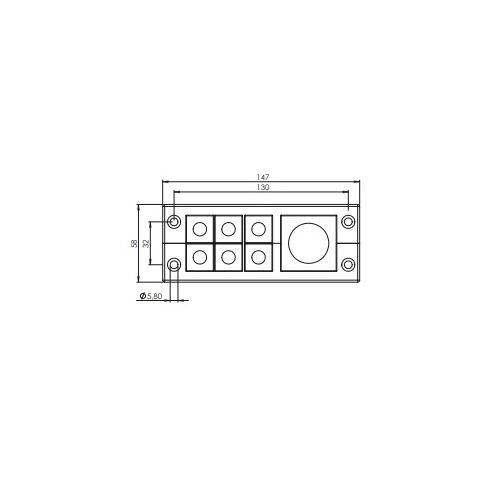

Length: 147mm
Width: 58mm
Height: 17mm
Cut out size: 112 x 36mm
Max No. cables: 25
Max Cable Diameter 35mm
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Mild steel, galvanically zinc plated
Packing Unit: 10
Icotek Order Number: 42247
EAN: 4251269308314
Centrally Split Cable Entry System
For Routing Cables with Connectors
Number of Grommets: 6 KT Small + 1 KT Large
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Length: 147mm
Width: 58mm
Height: 17mm
Cut out size: 112 x 36mm
Max No. cables: 25
Max Cable Diameter 35mm
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Mild steel, galvanically zinc plated
Snap-in with KEL-SNAP
Packing Unit: 10
Icotek Order Number: 42247
EAN: 4251269308314
