42259 | KEL-E4 black | icotek Cable Entry Frame
Split Cable Entry System, For Routing Cables with Connectors, Grommets: 4 KT Small, Inc flat Rubber Gasket, Length 120mm, Width 39mm, Height 17mm
| Complete Electronics Part No. | 42259 |
|---|---|
| Manufacturers Part No. | 42259 |
| Number of Cables: | max 16 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL E |
Description

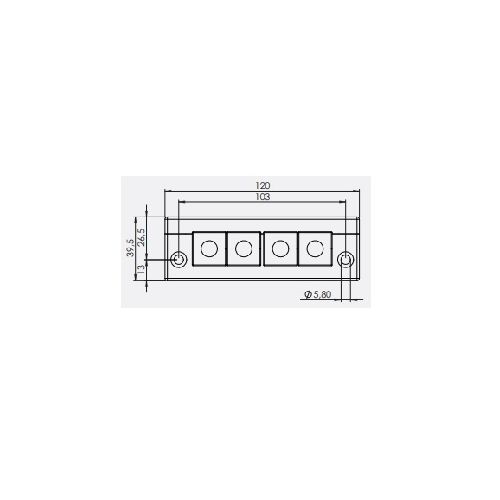

Length: 120mm
Width: 39mm
Height: 17mm
Cut out size: 86 x 24mm
Max No. cables: 16
Max Cable Diameter 17mm
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Mild steel, galvanically zinc plated
Packing Unit: 1
Icotek Order Number: 42259
EAN: 4251269308413
Split Cable Entry System
For Routing Cables with Connectors
Number of Grommets: 4 KT Small
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Temperature Rating: - 40°C to +140°C
Length: 120mm
Width: 39mm
Height: 17mm
Cut out size: 86 x 24mm
Max No. cables: 16
Max Cable Diameter 17mm
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Mounting Screws: Mild steel, galvanically zinc plated
Snap-in with KEL-SNAP
Packing Unit: 1
Icotek Order Number: 42259
EAN: 4251269308413
