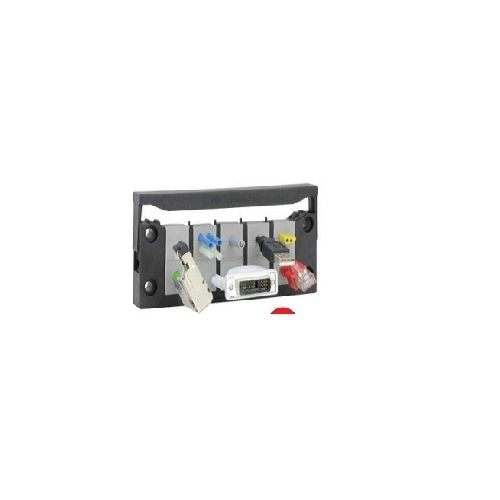

42410 | KEL-Quick 24/10 black | icotek Cable Entry Frame
Kel QUICK Cable Entry Frame, Route and seal pre-terminated cables, Fast, Easy assembly without the use of tools, Number of Grommets: 10 x QT
| Complete Electronics Part No. | 42410 |
|---|---|
| Manufacturers Part No. | 42410 |
| Number of Cables: | max 40 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL QUICK |
Description
Kel QUICK Cable Entry Frame
Route and seal pre-terminated cables
Fast, Easy Assembly without the use of tools
Number of Grommets: 10 x QT small
Temperature Rating: - 40°C to +140°C (static)
Flat Rubber Gasket included
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54 with Gasket
Length: 147mm
Width: 58
Height: 17mm
Cut out size: 112 x 36mm
Max No. cables: 40
Max Cable Diameter 15mm
Width: 58
Height: 17mm
Cut out size: 112 x 36mm
Max No. cables: 40
Max Cable Diameter 15mm
Halogen-free and silicone-free
Snap-in with KEL-SNAP
Packing Unit: 10
Icotek Order Number: 42410
EAN: 4251269308673
