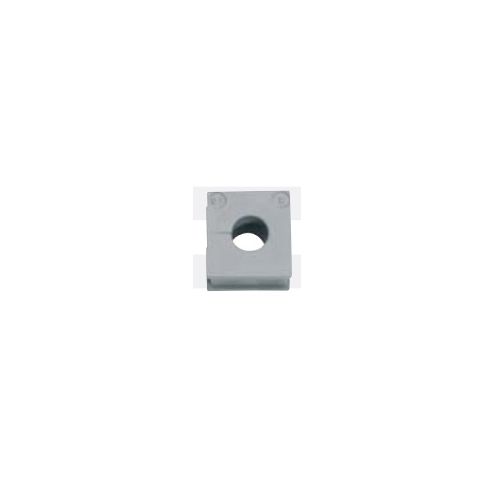

42514 | QT 14 Grey | Grommet
QT Cable Grommet, Clamping Range: 14-15mm, Material: Elastomer, Flame Class: UL94-Vo, Self extinguishing
| Complete Electronics Part No. | 42514 |
|---|---|
| Manufacturers Part No. | 42514 |
| Clamping Range | 15mm |
| Number of Cables: | max 1 |
| Core Colour: | Grey |
| ATEX Approval: | Not ATEX Approved |
| Series: | KVT Split Cable Gland |
Description
Flame Class: UL94-Vo, Self extinguishing
Temperature: - 40°C to +100°C (static)
For use with - KEL-QUICK, QVT, QVT ClICK, KEL-QTA frames
When installing the QT grommets in multiple rows, the flat sides should be facing each other.
Pack Unit: 10
icotek Order Number: 42514
EAN: 4251269308840
Cable grommets for QUICK systems
Clamping Range: 1 x 14 - 15mm
For round cable
Length: 19mm
Width: 20mm
Height: 12mm
Mounting Height: 2mm
Length: 19mm
Width: 20mm
Height: 12mm
Mounting Height: 2mm
Flame Class: UL94-Vo, Self extinguishing
Temperature: - 40°C to +100°C (static)
Ingress Protection: IP54
Material: Elastomer
Material: Elastomer
Halogen Free
Silicone Free
Colour: grey (Similar to RAL7035)
Silicone Free
Colour: grey (Similar to RAL7035)
For use with - KEL-QUICK, QVT, QVT ClICK, KEL-QTA frames
When installing the QT grommets in multiple rows, the flat sides should be facing each other.
Pack Unit: 10
icotek Order Number: 42514
EAN: 4251269308840
