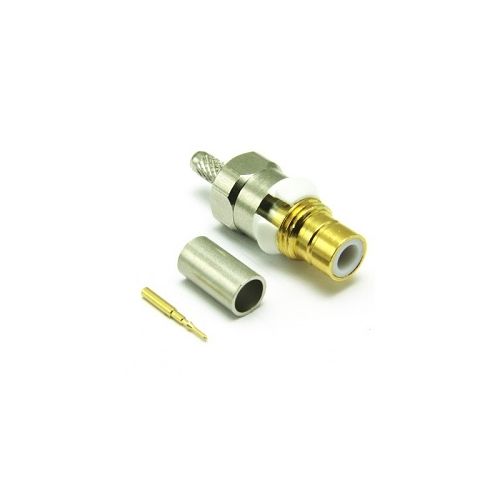

43-011-D6-BD | 43011D6BD | P43/5GTIS BT DDF Crimp Plug

BT Type 43 full crimp plug for DDF mounting on BT 6000 & 6003 distribution frames,for BT3002 and similar cables in group BD
More Information
Complete Electronics Part No. 43011D6BD
Manufacturers Part No. 43-011-D6-BD
Male/Female: Plug
Type Straight
Impedance 75 Ohm
Working Frequency Up To 3 GHz
Description

Electrical Specification

  • Impedance: 75 Ohm
  • Frequency Range: Up to 3GHz
  • Dielectric Withstand Voltage: 1500Veff
  • Insulation Resistance: 5000M-Ohm

Mechanical Specification

  • Design Standard: BS9210F0022 (BT-RC8003)
  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Teermination: Crimp
  • Mating Cycles: 250
  • Contact Retention: 22N min
  • Cable Retention: 60N min
  • Weight: 7.20g
  • Mating Force: 22N max
  • Un-Coupling Force: 22N max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP30
  • An extraction tool is required to remove plugs from the distribution frame.
  • Standard BT Type 43 is identified by a white locking clip fitted to the plug body

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Gold
  • Pack Size 25
