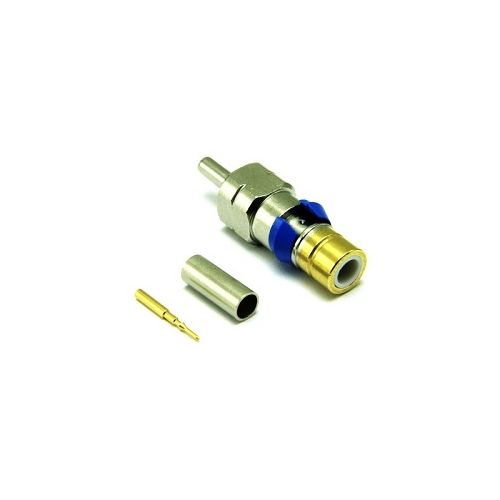

43-012-D6-AC | 43012D6AC | HDC43/RD179GTIS DDF Crimp Plug
HDC 43 full crimp plug for mounting on High Density distribution frames, suitable for RD179 and similar cables in group AC.
| Complete Electronics Part No. | 43012D6AC |
|---|---|
| Manufacturers Part No. | 43-012-D6-AC |
| Male/Female: | Plug |
| Type | Straight |
| Impedance | 75 Ohm |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency Range: Up to 3GHz
- Dielectric Withstand Voltage: 1500Veff
- Insulation Resistance: 5000M-Ohm
Mechanical Specification
- Design Standard: BS9210F0022 (BT-RC8003)
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Teermination: Crimp
- Mating Cycles: 250
- Contact Retention: 22N min
- Cable Retention: 60N min
- Weight: 5.80g
- Mating Force: 22N max
- Un-Coupling Force: 22N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP30
- An extraction tool is required to remove plugs from the distribution frame.
- HDC 43 is identified by a blue locking clip fitted to the plug body
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Gold
- Pack Size 25
