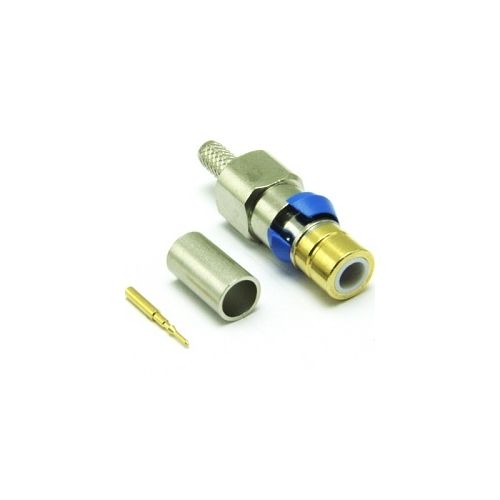

43-012-D6-BF | 43012D6BF | HDC43/7GTIS DDF Crimp Plug

HDC 43 full crimp plug for mounting on High Density distribution frames, suitable for BT7000 and similar cables in group BF.
More Information
Complete Electronics Part No. 43012D6BF
Manufacturers Part No. 43-012-D6-BF
Male/Female: Plug
Type Straight
Impedance 75 Ohm
Working Frequency Up To 3 GHz
Description

Electrical Specification

  • Impedance: 75 Ohm
  • Frequency Range: Up to 3GHz
  • Dielectric Withstand Voltage: 1500Veff
  • Insulation Resistance: 5000M-Ohm

Mechanical Specification

  • Design Standard: BS9210F0022 (BT-RC8003)
  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Teermination: Crimp
  • Mating Cycles: 250
  • Contact Retention: 22N min
  • Cable Retention: 220N min
  • Weight: 6.02g
  • Mating Force: 22N max
  • Un-Coupling Force: 22N max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP30
  • An extraction tool is required to remove plugs from the distribution frame.
  • HDC 43 is identified by a blue locking clip fitted to the plug body

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Gold
  • Pack Size 25
