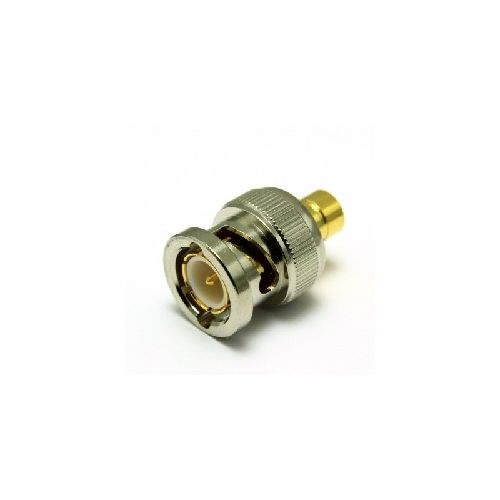

43-76A | 4376A | Type 43 Plug to BNC Plug Adaptor
In line Type 43 plug to BNC plug adaptor with gold plated inner and outer contact.
| Complete Electronics Part No. | 4376A |
|---|---|
| Manufacturers Part No. | 43 76A |
| Male/Female: | Male and Male |
| Type | Straight |
| Impedance | 75 Ohm |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency: Up to 3GHz
- Dielectric W/V: 1500 Veff
- Insulation: 5000 M Ohm
Mechanical Specification
- Design Standard: BS9210F0022 (BT-RC8003)
- RoHS3 Compliant
- Mating Cycles: 250
- Weight: 9.74g
- Mating Force: 22N max
- Un-Coupling Force: 22N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP 30
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Gold
