43520 | KEL-DP 24/50 A Grey | Cable Entry Plate
KEL-DP Cable Entry Plate, For routing cables without connectors, Cut out Dimensions: 112 x 36mm, max number of cables 50, max cable diameter 8.3mm
| Complete Electronics Part No. | 43520 |
|---|---|
| Manufacturers Part No. | 43520 |
| Number of Cables: | max 50 |
| Core Colour: | Grey |
| ATEX Approval: | Not ATEX Approved |
| Enclosure Shape: | Rectangular |
Description
Max no. of cables: 50
Max Cable Diameter 8.3mm
Clamping range:-
33 x 1 to 5.3mm
9 x 1 to 6.4mm
8 x 1 to 8.3mm
Minimum wall thickness: 1.5mm
Maximum wall thickness: 2.5mm
Material: Elastomer
Flame Class: UL94-V0, self-extinguishing
Temperature Rating: -30°C to +100°C
Silicone free, Halogen free
Ingress Protection: IP54/IP64
ST-B Plugs can be used for sealing pierced membranes if cables have been removed
Packing Unit: 10
Icotek Part Number: 43520
EAN: 4251269309915
KEL-DP 24/50 A gr Cable Entry Plate
For routing cables without connectors
Colour: Grey (similar to RAL 7035)

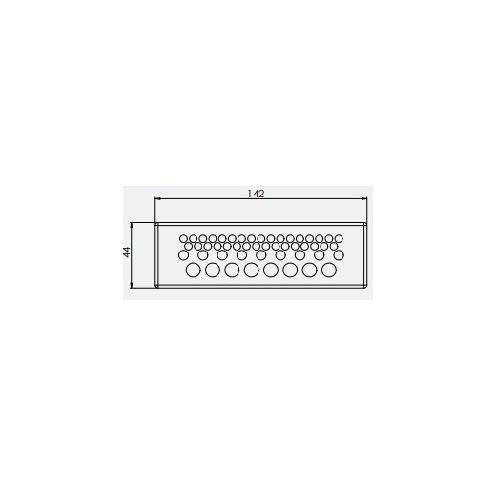

Length: 142mm
Width: 44mm
Height: 12mm
Cut out size: 112 x 36mm
Mounting height: 5mm
Mounting: Snap in
Length: 142mm
Width: 44mm
Height: 12mm
Cut out size: 112 x 36mm
Mounting height: 5mm
Mounting: Snap in
Max no. of cables: 50
Max Cable Diameter 8.3mm
Clamping range:-
33 x 1 to 5.3mm
9 x 1 to 6.4mm
8 x 1 to 8.3mm
Minimum wall thickness: 1.5mm
Maximum wall thickness: 2.5mm
Material: Elastomer
Flame Class: UL94-V0, self-extinguishing
Temperature Rating: -30°C to +100°C
Silicone free, Halogen free
Ingress Protection: IP54/IP64
ST-B Plugs can be used for sealing pierced membranes if cables have been removed
Packing Unit: 10
Icotek Part Number: 43520
EAN: 4251269309915
