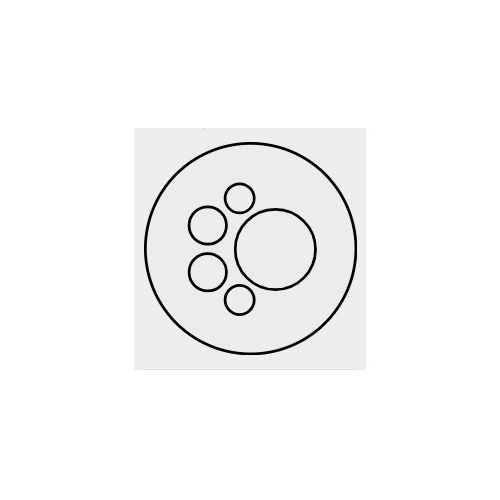

43573 | KEL-DP 20|5 A gy | Cable Entry Plate
KEL-DP Round Cable Entry Plate, For routing cables without connectors, Max number of cables: 5, Cut out Diameter: 20mm
| Complete Electronics Part No. | 43573 |
|---|---|
| Manufacturers Part No. | 43573 |
| Number of Cables: | max 5 |
| Core Colour: | Grey |
| ATEX Approval: | Not ATEX Approved |
| Enclosure Shape: | Circular |
| External Diameter | 27mm |
Description
KEL-DP 20/5 A gy
For routing cables without connectors
Number of Cables: max 5
Cut out Diameter: 20mm (M20)
Mounting Height: 5mm
Height: 12mm
For wall thickness: 1.5 - 2.5mm
Clamping range: 1 x 1 - 10.6mm, 2 x 1- 4.6mm, 1 x 1 - 3.6mm
Colour: Grey
Make a small hole in the thin membrane and push the cables through
Material: Elastomer
Flame Class: UL94-V0, self-extinguishing
Halogen and Silicone free
Operating Temperature: -40°C to 100°C
Pack Unit 10
icotek part number: 43573
EAN: 4251269320484
