43591 | KEL-DP-S 69/8 Grey | Cable Entry Plate
KEL-DP Round Cable Entry Plate, For routing cables without connectors, Cut out Dimensions: 69 x 10mm, max number of cables 8, max cable diameter 7.5mm
| Complete Electronics Part No. | 43591 |
|---|---|
| Manufacturers Part No. | 43591 |
| Number of Cables: | max 8 |
| Core Colour: | Grey |
| ATEX Approval: | Not ATEX Approved |
| Enclosure Shape: | Rectangular |
Description
Max no. of cables: 8
Max Cable Diameter 5mm
Clamping range:-
8 x 1 to 7.5mm
Minimum wall thickness: 1.5mm
Maximum wall thickness: 2.5mm
Material: Elastomer
Flame Class: UL94-V0, self-extinguishing
Temperature Rating: -30°C to +100°C
Silicone free, Halogen free
Ingress Protection: IP54/IP64
ST-B Plugs can be used for sealing pierced membranes if cables have been removed
Packing Unit: 10
Icotek Part Number: 43591
EAN: 4251269310300

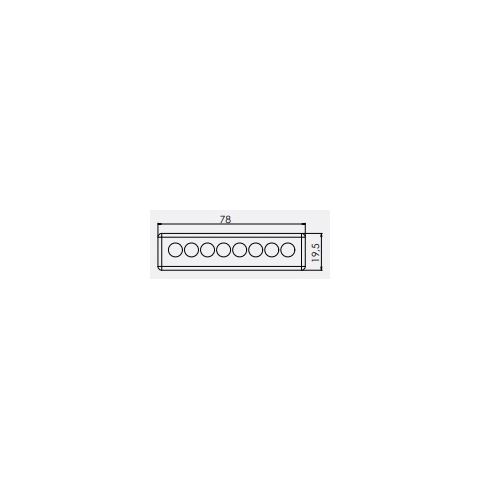

KEL-DP-S 69/8 gy Cable Entry Plate
For routing cables without connectors
Colour: Grey (similar to RAL 7035)
Length: 78mm
Width: 19.5mm
Height: 12mm
Cut out size: 69 x 10mm
Mounting height: 5mm
Mounting: Snap in
Length: 78mm
Width: 19.5mm
Height: 12mm
Cut out size: 69 x 10mm
Mounting height: 5mm
Mounting: Snap in
Max no. of cables: 8
Max Cable Diameter 5mm
Clamping range:-
8 x 1 to 7.5mm
Minimum wall thickness: 1.5mm
Maximum wall thickness: 2.5mm
Material: Elastomer
Flame Class: UL94-V0, self-extinguishing
Temperature Rating: -30°C to +100°C
Silicone free, Halogen free
Ingress Protection: IP54/IP64
ST-B Plugs can be used for sealing pierced membranes if cables have been removed
Packing Unit: 10
Icotek Part Number: 43591
EAN: 4251269310300
