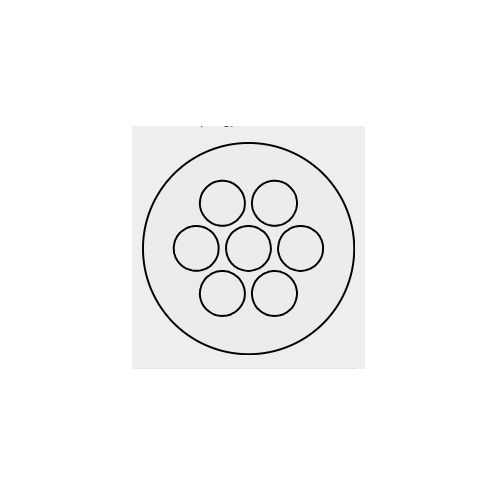

43596 | KEL-DP 32|7 B gy | Cable Entry Plate
KEL-DP Round Cable Entry Plate, For routing cables without connectors, Max number of cables: 7, Cut out Diameter: 32mm (M32)
| Complete Electronics Part No. | 43596 |
|---|---|
| Manufacturers Part No. | 43596 |
| Number of Cables: | max 7 |
| Core Colour: | Grey |
| ATEX Approval: | Not ATEX Approved |
| Enclosure Shape: | Circular |
| External Diameter | 38mm |
Description
KEL-DP 32/7 B gy
For routing cables without connectors
Number of Cables: max 7
Cut out Diameter: 32mm (M32)
Mounting Height: 5mm
Height: 12mm
For wall thickness: 2.8 - 4mm
Clamping range: 7 x 1 - 8mm
Colour: Grey
Make a small hole in the thin membrane and push the cables through
Material: Elastomer
Flame Class: UL94-V0, self-extinguishing
Halogen and Silicone free
Operating Temperature: -40°C to 100°C
Pack Unit 10
icotek part number: 43596
EAN: 4251269322525
