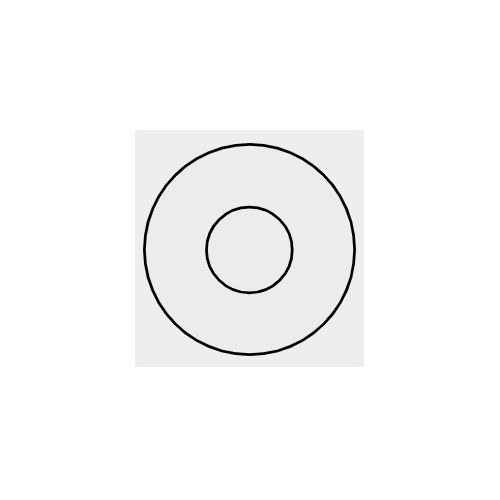

43600 | KEL-DP 16|1 A gy | Cable Entry Plate
KEL-DP Round Cable Entry Plate, For routing cables without connectors, Max number of cables: 1, Cut out Diameter: 16mm (M16)
| Complete Electronics Part No. | 43600 |
|---|---|
| Manufacturers Part No. | 43600 |
| Number of Cables: | max 1 |
| Core Colour: | Grey |
| ATEX Approval: | Not ATEX Approved |
| Enclosure Shape: | Circular |
| External Diameter | 23mm |
Description
KEL-DP 16/1 A gy
For routing cables without connectors
Number of Cables: max 1
Cut out Diameter: 16mm (M16)
Mounting Height: 5mm
Height: 12mm
For wall thickness: 1.5 - 2.5mm
Clamping range: 1 x 1 - 9.2mm
Colour: Grey
Make a small hole in the thin membrane and push the cables through
Material: Elastomer
Flame Class: UL94-V0, self-extinguishing
Halogen and Silicone free
Operating Temperature: -40°C to 100°C
Pack Unit 10
icotek part number: 43600
EAN: 4251269329791
