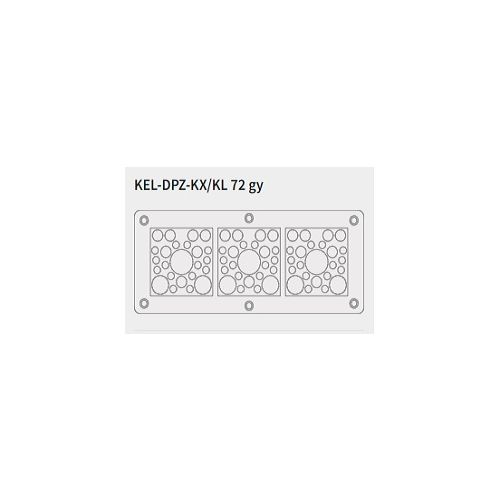

43675.001 | KEL-DPZ-KL 72 Grey | Cable Entry Plate
KEL DPZ KL Cable entry plates, To route and seal cables, Cut Out Dimensions: 192 x 62mm. Max 72 cables, Screw type mounting
| Complete Electronics Part No. | 43675.001 |
|---|---|
| Manufacturers Part No. | 43675.001 |
| Number of Cables: | max 72 |
| Core Colour: | Grey |
| ATEX Approval: | Not ATEX Approved |
| Enclosure Shape: | Rectangular |
Description
Length: 221mm
Width: 90mm
Height: 19 mm
Mounting height: 2 mm
Clamping range: 42 x 3.2 - 6.5mm, 21 x 5 - 10.2mm, 6 x 9 - 16.2mm, 3 x 16 - 22mm
Temperature: - 40°C to + 90°C
Material: Elastomer
Flame Class: UL94-V0, self-extinguishing
Ingress Protection: IP54
UL type 12 (acc. to UL 50E)
Halogen and Silicone Free
Pack Unit: 1 Piece(s)
icotek Order Number: 43675.001
EAN: 4251269310447
KEL DPZ KL Cable entry plates
To route and seal cables
For cables without preassembled connectors
For wire type: Round cable
Max 72 Cables
For wire type: Round cable
Max 72 Cables
Max cable diameter: 22mm
Length: 221mm
Width: 90mm
Height: 19 mm
Mounting height: 2 mm
Clamping range: 42 x 3.2 - 6.5mm, 21 x 5 - 10.2mm, 6 x 9 - 16.2mm, 3 x 16 - 22mm
Temperature: - 40°C to + 90°C
Material: Elastomer
Flame Class: UL94-V0, self-extinguishing
Ingress Protection: IP54
UL type 12 (acc. to UL 50E)
Halogen and Silicone Free
Pack Unit: 1 Piece(s)
icotek Order Number: 43675.001
EAN: 4251269310447
