43715 | KEL-DPZ 24/42 Grey | Cable Entry Plate

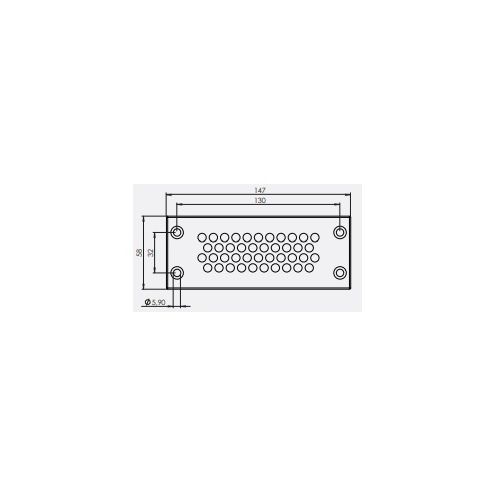

KEL-DPZ 24 Cable entry plates, To route and seal up to 42 cables, Dimensions: 147 x 58mm, max cable diameter 6.5mm, cut-out size 112 x 36mm
| Complete Electronics Part No. | 43715 |
|---|---|
| Manufacturers Part No. | 43715 |
| Number of Cables: | max 42 |
| Core Colour: | Grey |
| ATEX Approval: | Not ATEX Approved |
| Enclosure Shape: | Rectangular |
Description
Max no. of cables: 42
Max Cable Diameter 6.5mm
Clamping Range: 42 x 3.2 - 6.5mm
Number of screw holes: 4
Screw hole diameter: 5.9mm
Packing Unit: 10
Icotek Part Number:43715
EAN: 4251269310492
KEL-DPZ 24/42 gy Cable entry plates
To route and seal up to 42 cables
Certified protection up to IP66 (acc. to EN 60529)
Self tapping mounting screws are included
Material Elastomer
Base Frame: Polyamide (PA) / Stainless steel (V2A)
Flame Class: UL94-V0, self-extinguishing
Temperature Rating: - 40°C to +100°C
Silicon free, Halogen free
ST-B Plugs can be used for sealing pierced membranes if cables have been removed
Self tapping mounting screws are included
Material Elastomer
Base Frame: Polyamide (PA) / Stainless steel (V2A)
Flame Class: UL94-V0, self-extinguishing
Temperature Rating: - 40°C to +100°C
Silicon free, Halogen free
ST-B Plugs can be used for sealing pierced membranes if cables have been removed
Colour: Grey
Length: 147mm
Width: 58mm
Height: 14mm
Mounting height:14mm
Screw type mounting
Cut out size: 112 x 36mm
Length: 147mm
Width: 58mm
Height: 14mm
Mounting height:14mm
Screw type mounting
Cut out size: 112 x 36mm
Max no. of cables: 42
Max Cable Diameter 6.5mm
Clamping Range: 42 x 3.2 - 6.5mm
Number of screw holes: 4
Screw hole diameter: 5.9mm
Packing Unit: 10
Icotek Part Number:43715
EAN: 4251269310492
